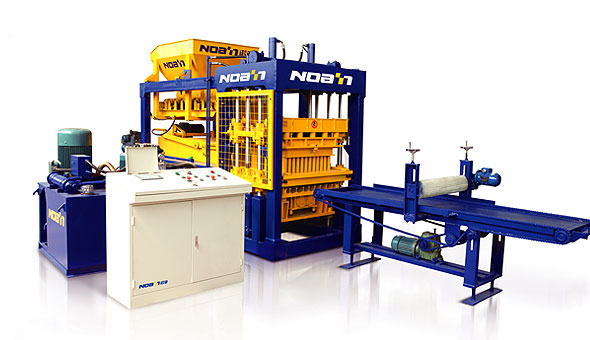

QT8-15 BLOCK MAKING MACHINE
1.Vibrator and the workbench to become an organic whole, reduce joint surface processing, reducing fittings, reduce the loss of energy transfer, improve the efficiency of the vibration. Using the workbench hole on the tank, and narrow opening area, put an end to the oil, to avoid damage to parts; At the same time increase the eccentric shaft hole, intermediate by excessive gear connection, thereby increasing the vibration area effectively, make the vibration are more, ensure the compactness and strength of block products.
2, USES the air spring pneumatic cylinder clamping, optimal damping effect, and can realize the load measurement and height control. Vibration isolation effect is good, can reduce the mechanical vibration generated by the bath.
3, quick die change equipment, ensure the pressure head and mould frame under clearance, mould replacement quick and easy.
QT8-15 PRODUCTION CAPACITY |
SPEC. |
Block 390*190*190 |
Block 390*100*190 |
Rectangular 200*100*60 |
I Shape 200*165*60 |
S Paver 225*112.5*60 |
Porous Brick 240*115*90 |
SolidBrick 240*115*53 |
Code |
|
|
|
|
|
|
|
Pcs/Pallet |
8 |
14 |
21 |
12 |
20 |
18 |
36 |
Pcs/Hour |
1440 |
2520 |
3780 |
2160 |
3600 |
3240 |
6480 |
Pcs/8 Hour |
11520 |
20160 |
30240 |
17280 |
28800 |
25920 |
51840 |
Year(300day) |
48676m³ |
44800m³ |
181440m² |
171089m² |
218734m² |
7776000Pcs |
15552000Pcs |
QT8-15 TECHNICAL DATA |
Overall Dimensions |
6800*3800*2600(mm) |
Pallet Size(mm) |
850*850*25(Bamboo) |
Machine Weight |
9100kg |
The Frequency Of Vibrate |
50-90Hz |
Max Excitation Force |
80KN |
Cycle Time(s) |
15-20S |
Installed Capacity(kw) |
31.7KW |
|
