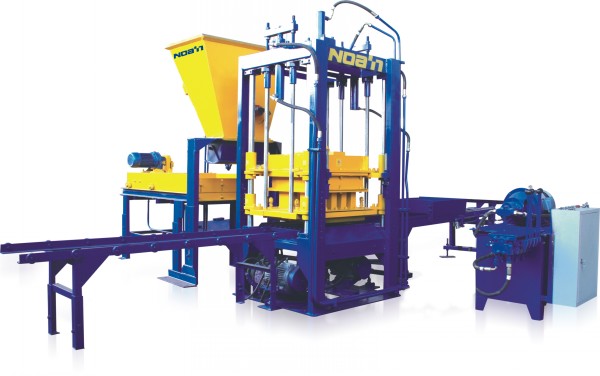

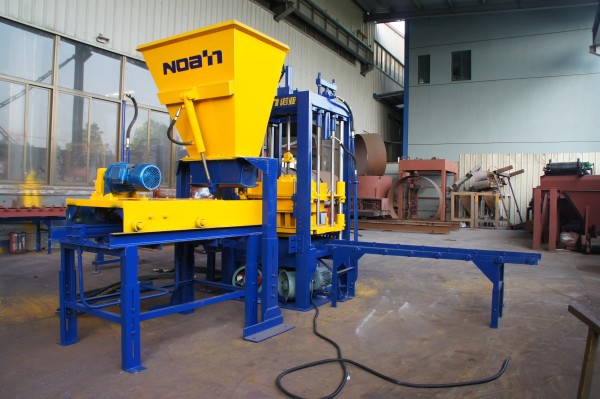

QT3-30 BLOCK MAKING MACHINE





1.The hydraulic most simplistic, a few minutes you can master the operation essentials
2 Simple Horizontal secondary fabrics, pressure oscillation combine high density molded products, excellent performance
3 compact structure, simple operation, easy maintenance. Reliable, economical and practical, suitable for small and medium sized customers start investing

QT3-30  PRODUCTION CAPACITY
SPEC. Block
390*190*190
 Block
390*100*190

Porous  BricK

240*115*90

   SolidBrick
240*115*53
Code
Pcs/Pallet 3 6 10 20
Pcs/Hour 270 540 1080 2160
Pcs/8 Hour 2160 4320 8640 17553
Year(300day) 9126m³ 9599m³ 2580000Pcs 5182500Pcs




QT3-30  TECHNICAL DATA
Overall Dimensions 2500*3000*2200(mm)
Machine Weight 3000kg
The Frequency Of Vibrate 50-90Hz
Max Excitation Force 40KN
Cycle Time(s) 30S

Installed Capacity(kw)

16.6KW
