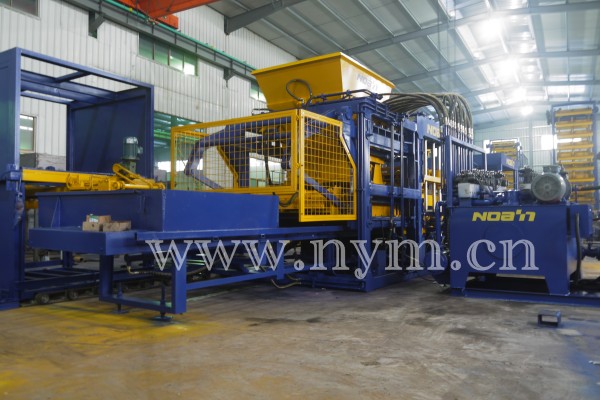

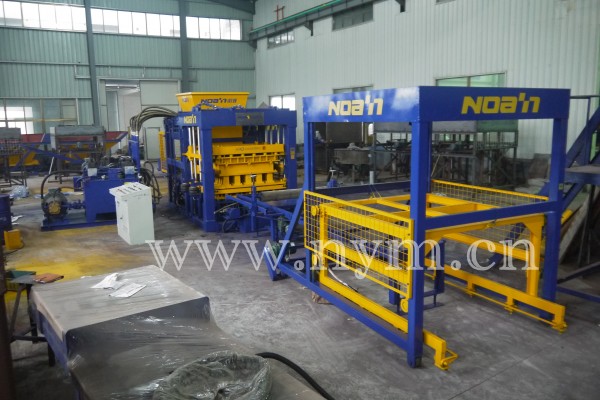

QT18-20 BLOCK MAKING MACHINE
1 Until to now, the largest, the highest quantity models
2 thick-walled rectangular steel frame, four-post-oriented, lengthened guide sleeve, durable structure.
3 Forced mold synchronization mechanism, to ensure highly accurate and consistent products, stripping stable yield.
4. Efficient vibration isolation system, transfer to racks and minimal vibration force base, installation is very easy to use.
5 random replacement of the mold, and with a second cloth device which produces a product with a surface layer, multi-variety production, can produce standard brick, brick, block, floor tiles, Curb and other products, a multi-purpose machine.

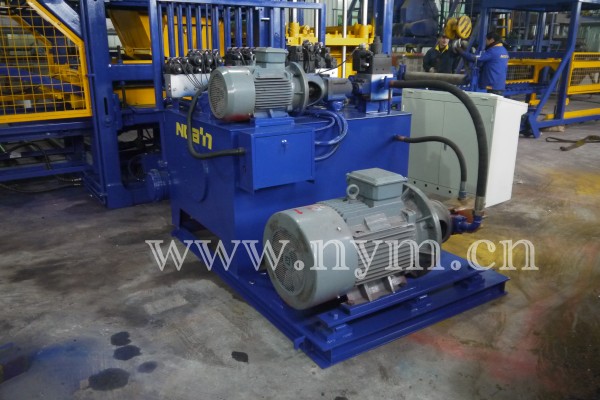

6 hydraulic system imported from Japan, hydraulic components, integrated hydraulic station, to ensure continuous operation of the device for a long time.
7. Use of international brands - Schneider Electric components, reliable operation; may be fully automatic, semi-automatic and manual operation; running analog display; operating parameters can be set in the panel to modify; electronic display point of failure, maintenance is convenient.
QFT18-20 PRODUCTION CAPACITY |
SPEC. |
Block 390*190*190 |
Block 390*100*190 |
Rectangular 200*100*60 |
I Shape 200*165*60 |
S Paver 225*112.5*60 |
Porous Brick 240*115*90 |
SolidBrick 240*115*53 |
Code |
|
|
|
|
|
|
|
Pcs/Pallet |
18 |
36 |
66 |
42 |
50 |
50 |
100 |
Pcs/Hour |
3240 |
6480 |
11880 |
7560 |
9000 |
9000 |
18000 |
Pcs/8 Hour |
25920 |
51840 |
95040 |
60480 |
72000 |
72000 |
144000 |
Year(300day) |
109521m³ |
115200m³ |
570240m² |
598812m² |
546835m² |
21600000Pcs |
43200000Pcs |
QT18-20 TECHNICAL DATA |
Overall Dimensions |
7500*5800*2900(mm) |
Pallet Size(mm) |
1350*1400*30(Bamboo) |
Machine Weight |
15100kg |
The Frequency Of Vibrate |
50-90Hz |
Max Excitation Force |
200KN |
Cycle Time(s) |
15-20S |
Installed Capacity(kw) |
85KW |
