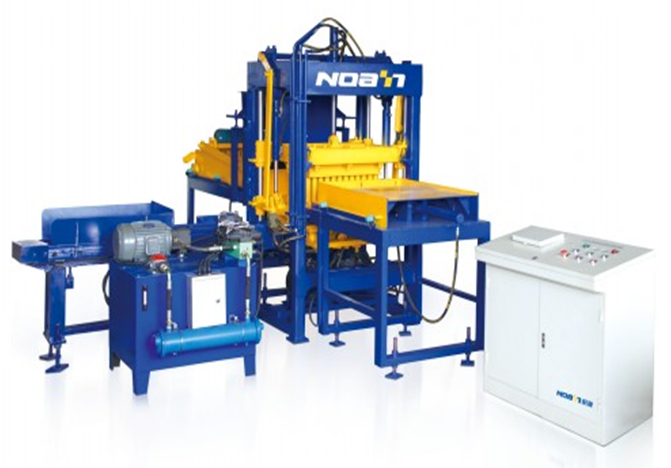

QT3-15 BLOCK MAKING MACHINE
|
QT3-15 PRODUCTION CAPACITY
|
|
SPEC.
|
Block
390*190*190
|
Block
390*100*190
|
|
|
Porous BricK
240*115*90
|
SolidBrick
240*115*53
|
|
Code
|
|
|
|
|
|
|
|
Pcs/Pallet
|
3
|
6
|
|
|
12
|
20
|
|
Pcs/Hour
|
360
|
720
|
|
|
1440
|
2880
|
|
Pcs/8 Hour
|
2880
|
5760
|
|
|
11520
|
23040
|
|
Year（300day）
|
12169m³
|
12799m³
|
|
|
3450000Pcs
|
6910000Pcs
|
|
QT3-15 TECHNICAL DATA
|
|
Overall Dimensions
|
1480*1150*2000(mm)
|
|
Pallet Size（mm）
|
850*550*20(Bamboo)
|
|
Machine Weight
|
2000kg
|
|
The Frequency Of Vibrate
|
50-90Hz
|
|
Max Excitation Force
|
30KN
|
|
Cycle Time（s）
|
40S
|
|
Installed Capacity（kw）
|
9.6KW
|
